Aluminum-magnesium-manganese Roofing System
Product details ：
Al-Mg-Mn alloy is a mix of aluminum, magnesium and manganese, which is known as excellent metal roof materials (with a service life of more than 50 years) including sector plates and arc plates widely used in gyms, stations, airports, theaters, exhibition halls, plants and urban landmarks for the features of proper intensity, strong weather ability and easy bending ability. Its specific gravity is only one third of the color coated steel plate.

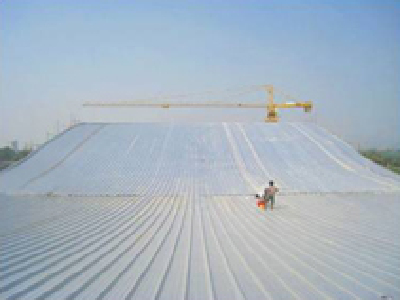

Aluminum-magnesium-manganese roofing system made by Shandong GSCO Materials Co., Ltd. is a special metal roof plate designed via vertical over-lock and vertical hinge, which is mainly suitable for large-span supporting system. No holes can be seen on the roofs and the hinge process is done automatically. Such a self-sealing water-proof structure solves the problem against wind and rain and is an ideal choice during construction.
Standing seam
| Shape | Effective width | Spreading width | Effective availability | Coating | Thickness | Per square singlet | Yield strength | Section inertia | Sectional resistance | |
| wx1 | wx2 | |||||||||
| YX65-400 | 400 | 582 | 68% | PVDF | 0.9 | 3.69 | 170 | 67.10 | 44.18 | 13.23 |
| YX65-420 | 420 | 600 | 70% | PVDF | 0.9 | 3.63 | 170 | 67.10 | 44.31 | 13.20 |
| YX65-430 | 430 | 610 | 71% | PVDF | 0.9 | 3.60 | 170 | 67.10 | 44.30 | 13.21 |
Standing seam
| Shape | Effective width | Spreading width | Effective availability | Coating | Thickness | Unit weight | Yield strength |
| YX25-225 | 225mm | 300mm | 75% | PVDF | 0.9mm | 0.74kg | 170Mpa |
