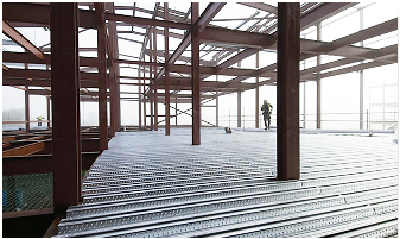

Floor Bearing Plate System
Floor Bearing Plate SystemProduct details :
According to the needs of steel-concrete composite structure, the steel plate and concrete are bonded by shear connection. Therefore, it gives full play to the advantages of the two types of materials and features light weight, high strength, high height, easy and fast construction, easy replacement and industrial production.
Outstanding Performances
1. Save plenty of temporary formwork and all or partial formwork support;
2. Reduce concrete consumption and the permanent load of structure, which is of great significance for high-rise buildings and earthquake areas;
3. Save plenty of labors and workload in the aspect of transportation, stacking and installation;
4. It is easy for laying of the pipeline for communication, power and heating supply and materials for heat preservation, sound insulation, thermal insulation and vibration isolation, and the floor performance can be improved.
5. The complete buckling and local buckling of steel is promoted due to the good tensile strength and ductility of steel coupled with concrete;
6. It can be used as tensile bars to reduce manufacture and installation of steel bars;
7. Various working platforms are provided to realize 3D operation, accelerate progress and shorten the construction period.
Type | YX76-344-688 | Application | ||
Effect width | 688 | |||
Feeding width | 1000 | |||
Thinkness | 0.8 | 1.0 | 1.2 | Floor bearing plate |
Section inertia | 91.62 | 119.38 | 142.01 | |
Section resistanc | 23.46 | 30.58 | 36.98 |
Type | YX51-240-720 | Application | ||
Effect width | 720 | |||
Feeding width | 1000 | |||
Thinkness | 0.8 | 1.0 | 1.2 | Floor bearing plate |
Section inertia | 52.80 | 64.55 | 76.38 | |
Section resistanc | 16.45 | 20.69 | 26.39 |
Type | YX75-200-600 | Application | ||
Effect width | 600 | |||
Feeding width | 1000 | |||
Thinkness | 0.8 | 1.0 | 1.2 | Floor bearing plate |
Section inertia | 105.10 | 136.80 | 162.80 | |
Section resistanc | 24.90 | 35.10 | 42.40 |
